Overview

Welcome! This document is for client-side developers who want to integrate ClearSite features into their own applications.

We’ve made a set of ClearSite APIs available so you can access specific functionality such as submitting form data, retrieving information, or rendering parts of the ClearSite experience within your app.

This guide will help you:

Our goal is to make your integration smooth and reliable. If anything is unclear or missing, feel free to reach out as we will keep this documentation updated based on your feedback

API Environments

Production (Live Environment)

UAT (Testing/Pre-Production Environment)

Test Service Provider Number : 25189 Test Service Provider Key : 9183244707

Getting Started

Translations

Curl

curl -X 'GET' \
  'https://uat.csdpi.protovate.com/api/translation' \
  -H 'accept: application/json'

Responses

🟢 200 - Valid Response

{
  "languages": [
    {
      "id": "612fdbd494a24f002ca0e0c",
      "code": "en",
      "translations": {
        "GLOBAL_CONTINUE_BUTTON_TEXT": "Continue",
        "GLOBAL_UPDATE_NOW_BUTTON_TEXT": "Update Now",
        "GLOBAL_UPDATE_LATER_BUTTON_TEXT": "Update Later",
        "GLOBAL_APP_NAME": "ClearSite"
      },
      "createdAt": "2024-11-25T01:11:30.461Z",
      "updatedAt": "2024-11-25T01:11:30.462Z"
    },
    {
      "id": "612fdbd494a24f002ca0e0d",
      "code": "fr",
      "translations": {
        "GLOBAL_CONTINUE_BUTTON_TEXT": "Continuer",
        "GLOBAL_UPDATE_NOW_BUTTON_TEXT": "Mettre à jour",
        "GLOBAL_UPDATE_LATER_BUTTON_TEXT": "Mise à jour ultérieure"
      },
      "createdAt": "2024-11-25T01:11:30.462Z",
      "updatedAt": "2024-11-25T01:11:30.462Z"
    }
  ]
}

Description

This endpoint returns all available translation strings used across the entire ClearSite application. It is typically called once during app initialization to load all UI text in the user’s preferred language.

Call this API as early as possible, usually before the user selects their language preference, so the app can display the UI in the correct language.

No authentication required for this api. This is a public endpoint.

Since this endpoint is static and includes all languages, the result may be cached on the client-side to avoid repeated requests.

Supported Languages

English, French, Spanish, Tagalog, Punjabi, Hindi, Portuguese

Method: GET

URL: /translation

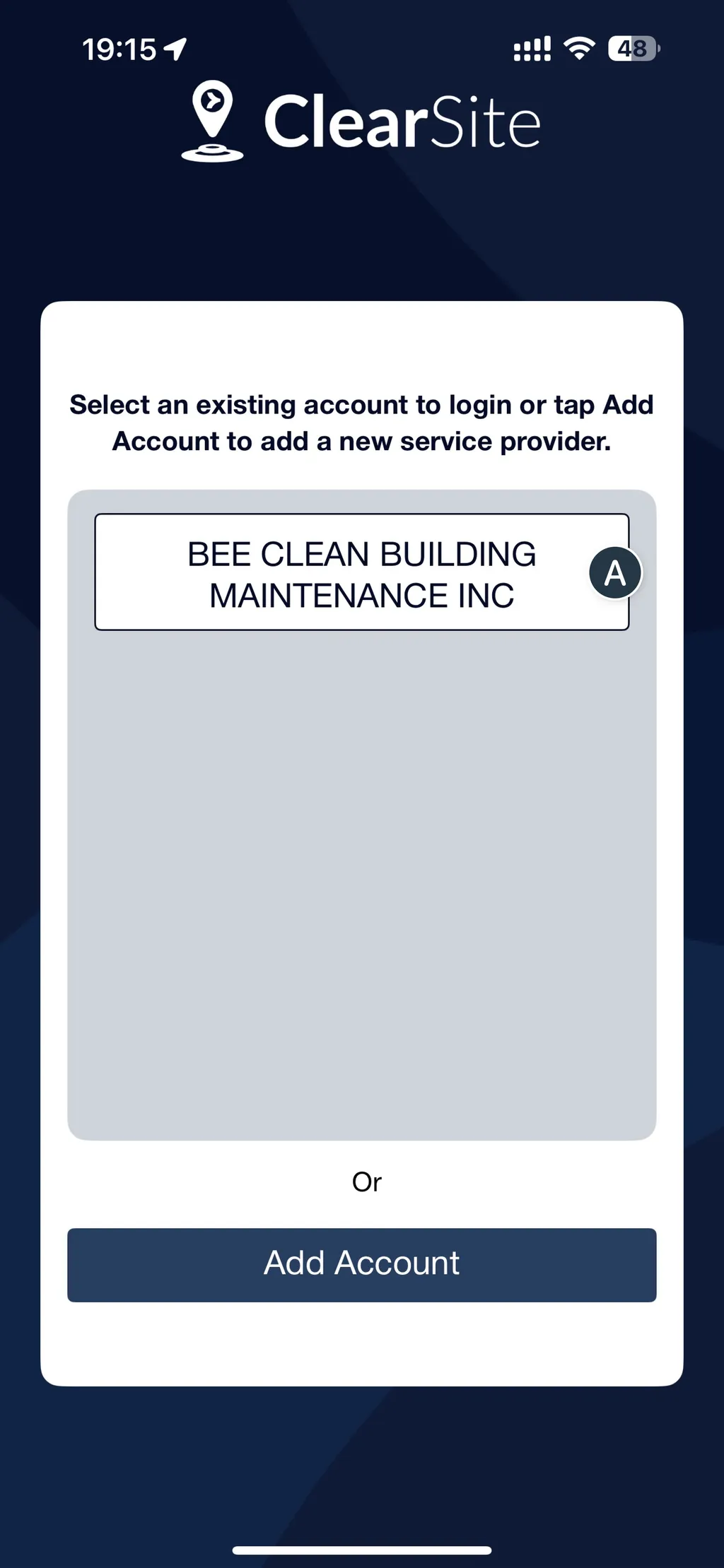

Validate the Service Provider

Curl

curl -X POST 'https://uat.csdpi.protovate.com/api/user/add-account' \
  -H 'Content-Type: application/json' \
  -d '{
    "ServiceProviderNumber": "123456",
    "ServiceProviderKey": "abc123"
  }'

Request Payload

{
  "ServiceProviderNumber": "123456",
  "ServiceProviderKey": "abc123"
}

Responses

🟢 200 - Returns Valid Provider Status

{
  "status": 200,
  "message": "Valid Service Provider",
  "name": "SUCCESS_RESPONSE"
}

Response Header

{
  "access-control-allow-origin": "*",
  "connection": " keep-alive",
  "content-length": "75",
  "content-type": "application/json; charset=utf-8",
  "date": "Tue, 10 Jun 2025 12:18:40 GMT",
  "etag": "W/\"4b-y97PpUPePibDCu5HNgjwaUEa9QA\"",
  "server": "nginx",
  "vary": "Accept-Encoding",
  "x-powered-by": "Express"
}

🔴 400 - Error: Bad Request

{
  "status": 400,
  "message": "Could not find Service Provider.",
  "name": "AUTH_ERROR"
}

Response Header

{
  "access-control-allow-origin": "*",
  "connection": "keep-alive",
  "content-length": "79",
  "content-type": "application/json; charset=utf-8",
  "date": "Tue, 10 Jun 2025 12:18:40 GMT",
  "etag": "W/\"4f-U8wF1K2rcljIef1yVcA1UKxOrbk\"",
  "server": "nginx",
  "vary": "Accept-Encoding",
  "x-powered-by": "Express"
}

Description

This API validates a Service Provider Number and Service Provider Key submitted by the user, usually through a form in the UI. It checks whether the combination exists and is valid in the system.

This is typically one of the first steps before allowing a user to proceed on registering and access app-specific functionality.

Call this API after the user submits their Service Provider credentials in the UI. You can use the result to determine whether to proceed or show an error message.

No authentication required. This endpoint is accessible publicly to support user onboarding and login flows.

Method: POST

URL: /user/add-account

Parameter Required Data Type Description
ServiceProviderNumber true integer Service Provider number provided by the user.
ServiceProviderKey true string Service Provider security key provided by the user.

Verifying the OTP

Curl

curl -X POST "https://uat.csdpi.protovate.com/api/user/register" \
  -H "Content-Type: application/json" \
  -d '{
    "VerificationCode": "123456",
    "tzOffset": -240
  }'

Request Payload

{
  "VerificationCode": "123456",
  "tzOffset": -240
}

Responses

🟢 200 - Returns Device Token

{
  "status": 200,
  "message": "Registered a new user",
  "data": {
    "DeviceSessionToken": "xxx"
  }
}

🔴 400 - Bad Request

{
  "status": 400,
  "message": "Invalid Verification Code",
  "name": "HTTP_ERROR"
}

Description

This API registers a user by collecting their details and preferred authentication method. Based on the method selected, a One-Time Password (OTP) is sent to either their mobile number (SMS) or email address to begin verification.

Use this API after validating the service provider and once the user has filled in their username and contact information. This is the first step in account creation or login.

No authentication required. This is a public endpoint to support onboarding.

Method: POST

URL: /user/register

Description

Request Payload

Parameter Required Data Type Description
VerificationCode true string Verification code sent to the user via SMS or email.
tzOffset true integer

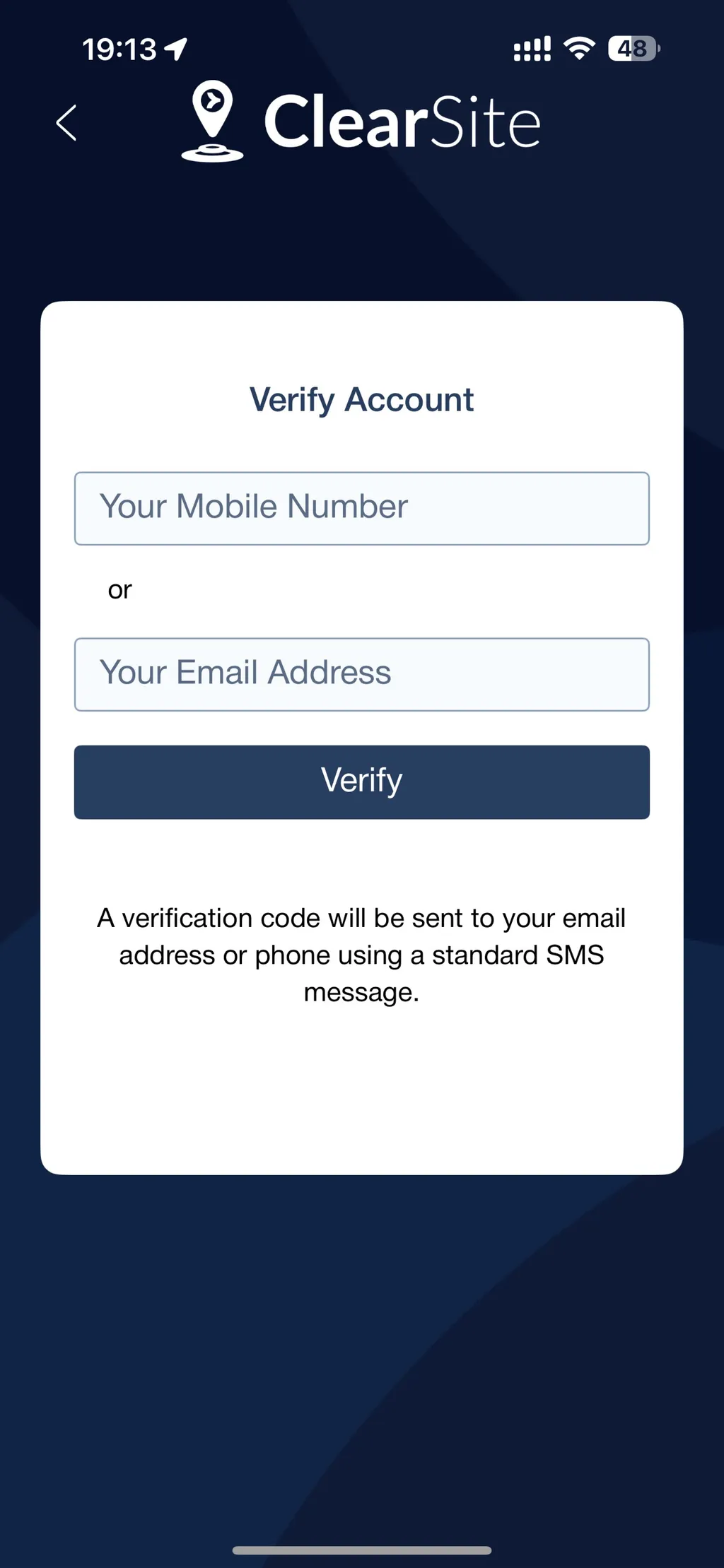

Register a User

Curl

curl -X 'POST' \
  'https://uat.csdpi.protovate.com/api/user/verify-account' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "UserName": "Test",
  "ServiceProviderNumber": "123456",
  "ServiceProviderKey": "abc123",
  "AuthMethod": 1,
  "Phone": "+11987654321",
  "DeviceId": "emulator123",
  "DeviceType": "tablet",
  "DeviceOS": "android",
  "DeviceName": "emulator",
  "AppVersion": "1.1.1",
  "Language": "en"
}

Request Payload

{
  "UserName": "Sebastian",
  "ServiceProviderNumber": "128816",
  "ServiceProviderKey": "9672769984",
  "AuthMethod": 1,
  "Phone": "+13261235432",
  "DeviceId": "emulator123",
  "DeviceType": "tablet",
  "DeviceOS": "android",
  "DeviceName": "emulator",
  "Language": "en",
  "AppVersion": "1.1.1"
}

Responses

🟢 200 - Returns Valid Provider Status

{
  "status": 200,
  "message": "Sent verification code."
}

🔴 500 - Error: Internal Server Error

{
  "status": 500,
  "message": "Could not send verification code to Phone => AxiosError: Request failed with status code 403",
  "name": "HTTP_ERROR"

}

🔴 400 - Bad Request

{
  "status": 400,
  "message": "Invalid Verification Code",
  "name": "HTTP_ERROR"
}

Description

This API registers a user by collecting their details and preferred authentication method. Based on the method selected, a One-Time Password (OTP) is sent to either their mobile number (SMS) or email address to begin verification. Use this endpoint after the user enters the verification code sent to their email or mobile number.

Use this API after validating the service provider and once the user has filled in their username and contact information. This is the first step in account creation or login.

No authentication required. This is a public endpoint to support onboarding.

Important Note

Keep a local copy of ServiceProviderNumber and ServiceProviderKey as this may be required by other APIs.

Method: POST

URL: /user/verify-account

Request Payload

Parameter Required Data Type Description
UserName true string User’s preferred name
ServiceProviderNumber true string Service Provider Number
ServiceProviderKey true string Service Provider Key
AuthMethod true integer mobile = 1; email = 2
Phone true; if AuthMethod = 1 string Phone number to send the SMS verification code
Email true; if AuthMethod = 2 string Email address to send the verification code
DeviceId false string
DeviceType false string
DeviceOS false string
DeviceName false string
Language true string
AppVersion true string APP version number. If its an API user, specify app version as "API USER"

Login

Curl

curl -X POST 'https://uat.csdpi.protovate.com/api/user/login' \
  -H 'Content-Type: application/json' \
  -d '{
    "DeviceSessionToken": "xxxxxxxxxxxxxx",
    "tzOffset": -240
  }'

Request Payload

{
  "DeviceSessionToken": "xxxxxxxxxxxxxx",
  "tzOffset": -240
}


{
  let timeZoneOffset = TimeZone.current.secondsFromGMT()
  let minutesOffset = timeZoneOffset/60
}

Responses

🟢 200 - Returns JWT Token

{
  "status": 200,
  "message": "OK",
  "data": {
    "SessionToken": "xxx",
    "VendorId": "123",
    "ServiceProviderName": "VENTILEX",
    "ServiceProviderId": 189
  }
}

🔴 401 - Error: Unauthorised

{
  "status": 401,
  "message": "Invalid Device SessionToken",
  "name": "AUTH_ERROR"
}

Description

This API finalizes the login process by exchanging the previously issued Session Token for JWT Token. The JWT token represents the authenticated user and is required for all future access to protected endpoints.

Use this after a successful OTP verification. The client should already have a valid Session Token stored at this point. This API requires a valid Session Token in the request body.

Method: POST

URL: /user/login

Request Payload

Parameter Required Data Type Description
DeviceSessionToken true string Authorisation token obtained from account verification process.
tzOffset integer Timezone

Request Response Object

Parameter Data Type Description
SessionToken string JWT token obtained from account login.
VendorId string Vendor ID.
ServiceProviderName string Service Provider name.
ServiceProviderId integer Service Provider ID.

Save the SessionToken securely in the client (e.g. localStorage, secure storage). This token should be included in the Authentication header for protected endpoints.

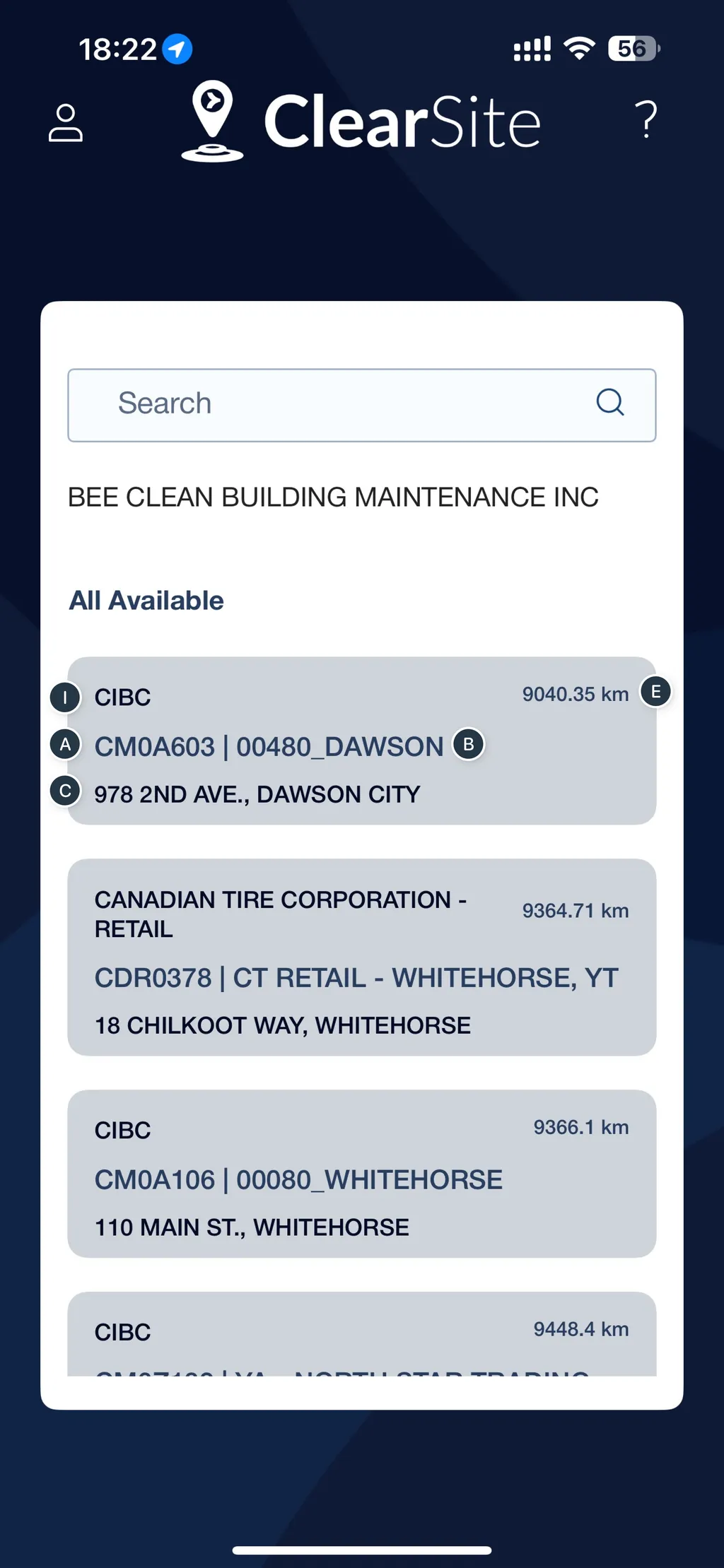

Buildings List

Curl

curl -X 'GET' \
  'https://uat.csdpi.protovate.com/api/building/v2?serviceProviderId=25189' \
  -H 'accept: application/json'

Responses

🟢 200 - Returns Buildings

{
  "status": 200,
  "message": "OK",
  "name": "SUCCESS_RESPONSE",
  "data": [
    {
      "BUILDING_ID": "VYVWAB06",
      "BUILDING_NAME": "VALLEYVIEW CO",
      "ADDRESS": "4805 - 50 AVENUE",
      "CITY": "Valleyview",
      "LATITUDE": 55.069030999999995,
      "LONGITUDE": -117.277858,
      "SRVCPROVIDER_ID": 189,
      "SRVCPROVIDER_CLASS": "VENDOR",
      "CLIENT_NAME": "BMO",
      "RESPONSE_LEVEL": 1,
      "SERVICES": [
        {
          "ISCHECKINPICMANDATORY": false,
          "ISCHECKOUTPICMANDATORY": false,
          "SERVICECATEGORY": "Exterior Cleaning",
          "SERVICENAME": "Exterior Cleaning",
          "SERVICE_ID": 431412465,
          "SERVICE_CATEGORY_ID": 431412362
        }
      ]
    }
  ]
}

🔴 401 - Error: Unauthorised

{
  "status": 401,
  "message": "Unauthorized",
  "name": "AUTH_ERROR"
}

Description

This API retrieves the complete list of buildings associated with a given Service Provider ID. It requires authentication via a JWT token, obtained from Login API.

Use this API after logging in to populate building selections or initialize building-specific data in your application.

This API requires a ServiceProviderNumber that is supplied by the user during registration. See 📄 Register a User for more information.

Important Note on Data Volume

This API returns all buildings in one response, which may include hundreds of records depending on the service provider.

This improves performance and minimizes unnecessary API traffic.

Method: GET

URL: /building/v2

Request Parameters

Parameter Required Data Type Description
servicerProviderId true array[string] Service Provider Number
lastModified false string Date last modified

Headers

authorization: JWT Token

See 📄 Login for more information.

Building Response Object

Building Data Fields

Parameter Data Type Description
BUILDING_ID string Unique identifier for the building. Example: GOC00907
BUILDING_NAME string Official name of the building. Example: ASTICOU CENTRE - BLOCK 1200
ADDRESS string Street address of the building. Example: 241 CITÉ-DES-JEUNES BLVD
CITY string City where the building is located. Example: GATINEAU
LATITUDE number Geographic coordinate (north-south position).
LONGITUDE number Geographic coordinate (east-west position).
SRVCPROVIDER_ID number ID of the service provider responsible for the building.
SRVCPROVIDER_CLASS string Classification of the service provider (e.g., VENDOR, INTERNAL).
CLIENT_NAME string Name of the client or organization responsible for the building.
RESPONSE_LEVEL number Numeric indicator of response or priority level.
SERVICES array[Object] List of services assigned to the building (each with detailed info).

Each object inside SERVICES contains:

Field Name Data Type Description
ISCHECKINPICMANDATORY boolean Whether a check-in photo is mandatory for the service (true = mandatory, false = optional).
ISCHECKOUTPICMANDATORY boolean Whether a check-out photo is mandatory for the service.
SERVICECATEGORY string The category under which the service falls. Example: "Cleaning"
SERVICENAME string The specific name of the service. Example: "Landscaping"
SERVICE_ID number Unique ID of the service.
SERVICE_CATEGORY_ID number ID representing the broader category of the service (for grouping purposes).

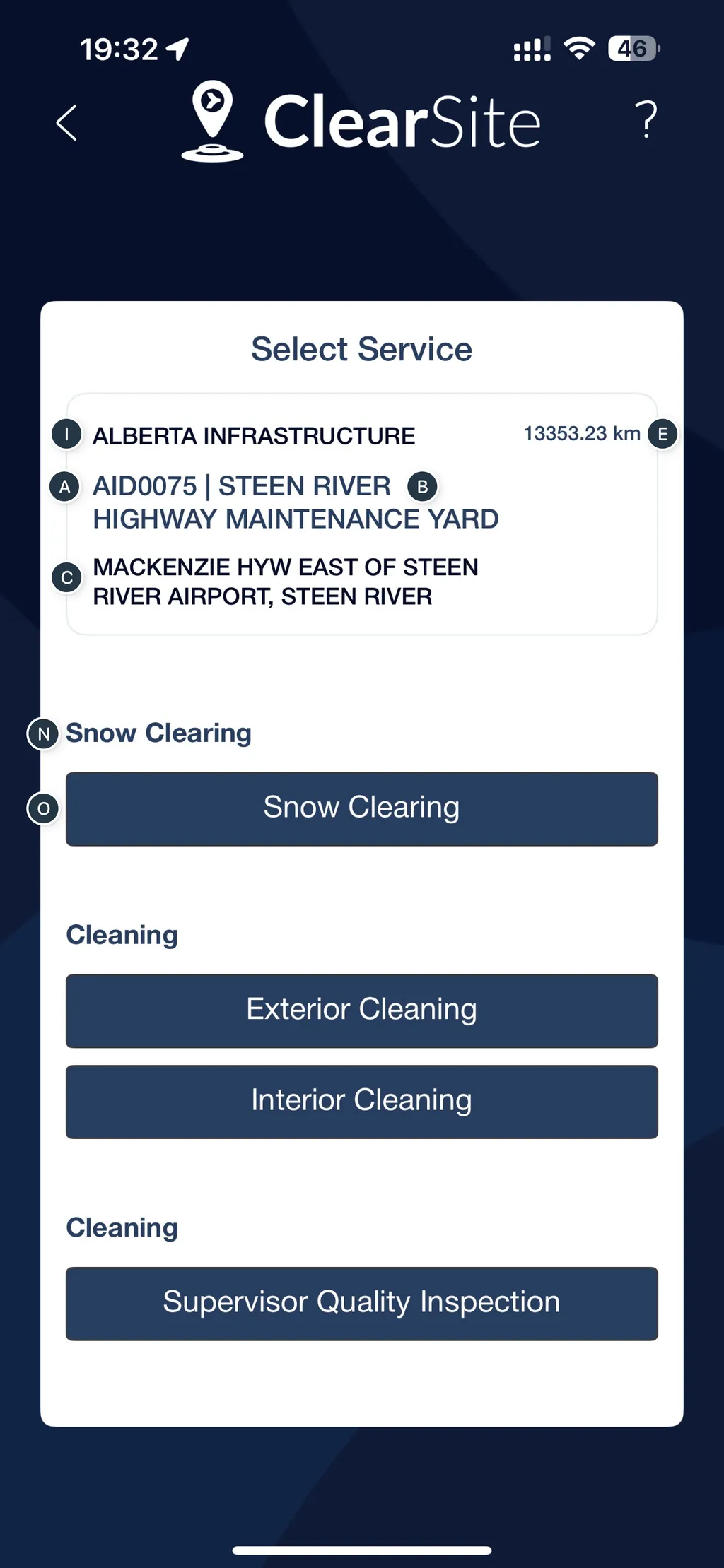

Service Category

Curl

curl -X 'GET' \
  'https://uat.csdpi.protovate.com/api/service-category?lang=en&SERVICE_ID=431412465&CATEGORY_ID=431412362' \
  -H 'accept: application/json' \
  -H 'authorization: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VySWQiOiI2ODUzZGU5OGE3NTliMzBkYzcxNmM4YTQiLCJpYXQiOjE3NTAzMjcwNDh9.57A_KP7G2TBMa2exx5vBEHfInvzxBy-oCv5Wj3UyjEw'

Responses

🟢 200 - Returns Service Categories

{
  "response": [
    {
      "id": "61664cdffb3e571dcaf41649",
      "CATEGORY_ID": 431412362,
      "SERVICE_ID": 431412465,
      "LANG": {
        "en": {
          "SERVICE_NAME": "Exterior Cleaning",
          "CATEGORY_NAME": "Cleaning"
        },
        "fr": {
          "SERVICE_NAME": "Nettoyage extérieur",
          "CATEGORY_NAME": "Nettoyage"
        },
        "es": {
          "SERVICE_NAME": "Limpieza exterior",
          "CATEGORY_NAME": "Limpieza"
        },
        "tl": {
          "SERVICE_NAME": "Panlinis na Panlabas",
          "CATEGORY_NAME": "Paglilinis"
        },
        "pa": {
          "SERVICE_NAME": "ਬਾਹਰੀ ਸਫਾਈ",
          "CATEGORY_NAME": "ਸਫਾਈ"
        },
        "hi": {
          "SERVICE_NAME": "बाहरी सफाई",
          "CATEGORY_NAME": "सफाई"
        },
        "pt": {
          "SERVICE_NAME": "Limpeza Exterior",
          "CATEGORY_NAME": "Limpeza"
        }
      },
      "DISPLAY_ORDER": 0,
      "createdAt": "2021-10-13T03:04:57.962Z",
      "updatedAt": "2021-10-13T03:04:57.962Z"
    }
  ]
}

🔴 401 - Error: Unauthorised

{
  "status": 401,
  "message": "Unauthorized",
  "name": "AUTH_ERROR"
}

Description

This API fetches localized translations for a given Service Category, based on the combination of a Service ID and a Category ID.

Service categories are maintained in an external system, so translations are retrieved separately to ensure the UI can display the correct language labels.

Call this API when displaying or selecting service categories in a multi-language interface, especially when initializing service forms or lists.

A valid JWT Token in the Authorization header is required to make a request.

Method: GET

URL: /service-category

Request parameters

Parameter Required Data Type Description
lang false string Language code. Available values: en, es, pt, tl, hi, pa, fr
SERVICE_ID false number
CATEGORY_ID false number

Headers

authorization: JWT Token

See 📄 Login for more information.

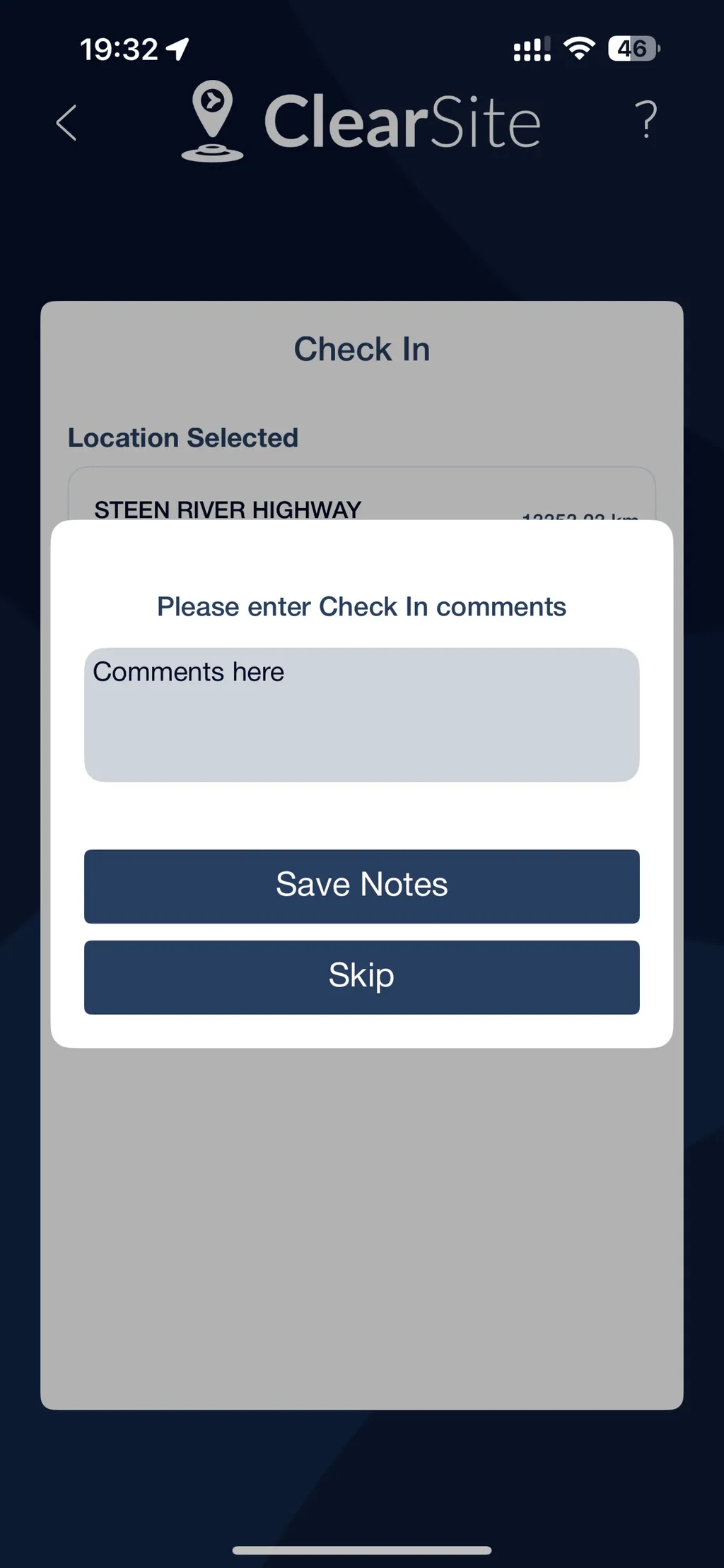

Check In / Check Out

Curl

curl -X 'POST' \
  'https://uat.csdpi.protovate.com/api/location-event/new' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "data": {
    "jobId": "613184a1b5f974005bef2e29",
    "actionType": 2,
    "building": "613184a1b5f974005bef2e29",
    "serviceCategory": {
      "id": "613184a1b5f974005bef2e29",
      "categoryType": "Exterior Cleaning",
      "categoryName": "Supervisor Quality Inspection"
    },
    "vendor": "613184a1b5f974005bef2e2b",
    "completeType": 1,
    "checkIn": {
      "userLatitude": 52.87408,
      "userLongitude": 52.87408,
      "note": [
        {
          "text": "OK"
        }
      ],
      "photos": [
        "613184a1b5f974005bef2e2b",
        "613184a1b5f974005bef2e2c"
      ],
      "submitAt": "2021-09-08T03:28:14.841Z"
    },
    "checkOut": {
      "userLatitude": 52.87408,
      "userLongitude": 52.87408,
      "note": [
        {
          "text": "OK"
        }
      ],
      "photos": [
        "613184a1b5f974005bef2e2b",
        "613184a1b5f974005bef2e2c"
      ],
      "submitAt": "2021-09-08T03:28:14.841Z"
    },
    "tzOffset": -240
  }
}'

Request Payload

{
  "data": {
    "jobId": "613184a1b5f974005bef2e29",
    "actionType": 2,
    "building": "613184a1b5f974005bef2e29",
    "serviceCategory": {
      "id": "613184a1b5f974005bef2e29",
      "categoryType": "Exterior Cleaning",
      "categoryName": "Supervisor Quality Inspection"
    },
    "vendor": "613184a1b5f974005bef2e2b",
    "completeType": 1,
    "checkIn": {
      "userLatitude": 52.87408,
      "userLongitude": 52.87408,
      "note": [
        {
          "text": "OK"
        }
      ],
      "photos": ["613184a1b5f974005bef2e2b", "613184a1b5f974005bef2e2c"],
      "submitAt": "2021-09-08T03:28:14.841Z"
    },
    "checkOut": {
      "userLatitude": 52.87408,
      "userLongitude": 52.87408,
      "note": [
        {
          "text": "OK"
        }
      ],
      "photos": ["613184a1b5f974005bef2e2b", "613184a1b5f974005bef2e2c"],
      "submitAt": "2021-09-08T03:28:14.841Z"
    },
    "tzOffset": -240
  }
}

Responses

🟢 200 - Returns Registered Status

{
  "result": {
    "ok": 1,
    "n": 1,
    "id": "614cb821062a4dd2f4605319"
  }
}

🔴 401 - Error: Unauthorised

{
  "status": 401,
  "message": "Unauthorized",
  "name": "AUTH_ERROR"
}

Description

This API is used by technicians to log service visits. It captures both check-in and check-out details, including feedback notes, photos, and other context tied to a specific job and location.

This is critical for documenting the condition of the site before and after the word is performed.

Use this API after the technician completes their service session, and is ready to submit:

A valid JWT token is required to make a request from this API.

Method: POST

URL: /location-event/new

Headers

authorization: JWT Token

See 📄 Login for more information.

Request Payload

Job Action Payload Fields

Field Name Required Data Type Description
jobId true string Unique identifier of the service job.
actionType true integer Type of action (1 = check-in, 2 = check-out, 3 = complete).
building true string Building ID where the job was performed.
serviceCategory true array[Object] Describes the category of service performed. (See Service Category table)
vendor true string ID of the vendor performing the service.
completeType true integer Type of completion (e.g., 0 = normal, 1 = forced/auto).
checkIn true array[Object] Object containing check-in data (photos, notes, timestamp). (See Check In / Check Out table)
checkOut true array[Object] Object containing check-out data (photos, notes, timestamp, location). (See Check In / Check Out table)
tzOffset true integer Timezone offset in minutes from UTC (e.g., 330 for IST).

Service Category object

Provides the ID and name of the service category.

Field Name Required Data Type Description
id true string ID of the service category.
categoryType true string Internal name of the service category.
categoryName true string Human-readable name of the service category.

Check-In object

Contains details captured at the time of check-in.

Field Name Required Data Type Description
note true array[Note] Optional notes submitted during check-in. Each note contains a text field. (See Note Object table below)
photos true array[string] Array of photo IDs taken during check-in. See Photo Upload for more information.
submitAt true string (ISO 8601) Date and time of check-in submission.

Check-Out object

Contains details captured at the time of check-out, including geolocation.

Field Name Required Data Type Description
userLatitude true float Latitude coordinate of the user/device at check-out.
userLongitude true float Longitude coordinate of the user/device at check-out.
note true array[Object] Notes submitted during check-out. Each note object contains a text field.
photos true array[Object] Array of photo IDs taken during check-out. See Photo Upload for more info.
submitAt true Date (string) Date and time of check-out submission.

Note object

Used in both checkIn.note and checkOut.note as an array of objects.

Parameter Required Data Type Description
text true string Free-text note added by the user.

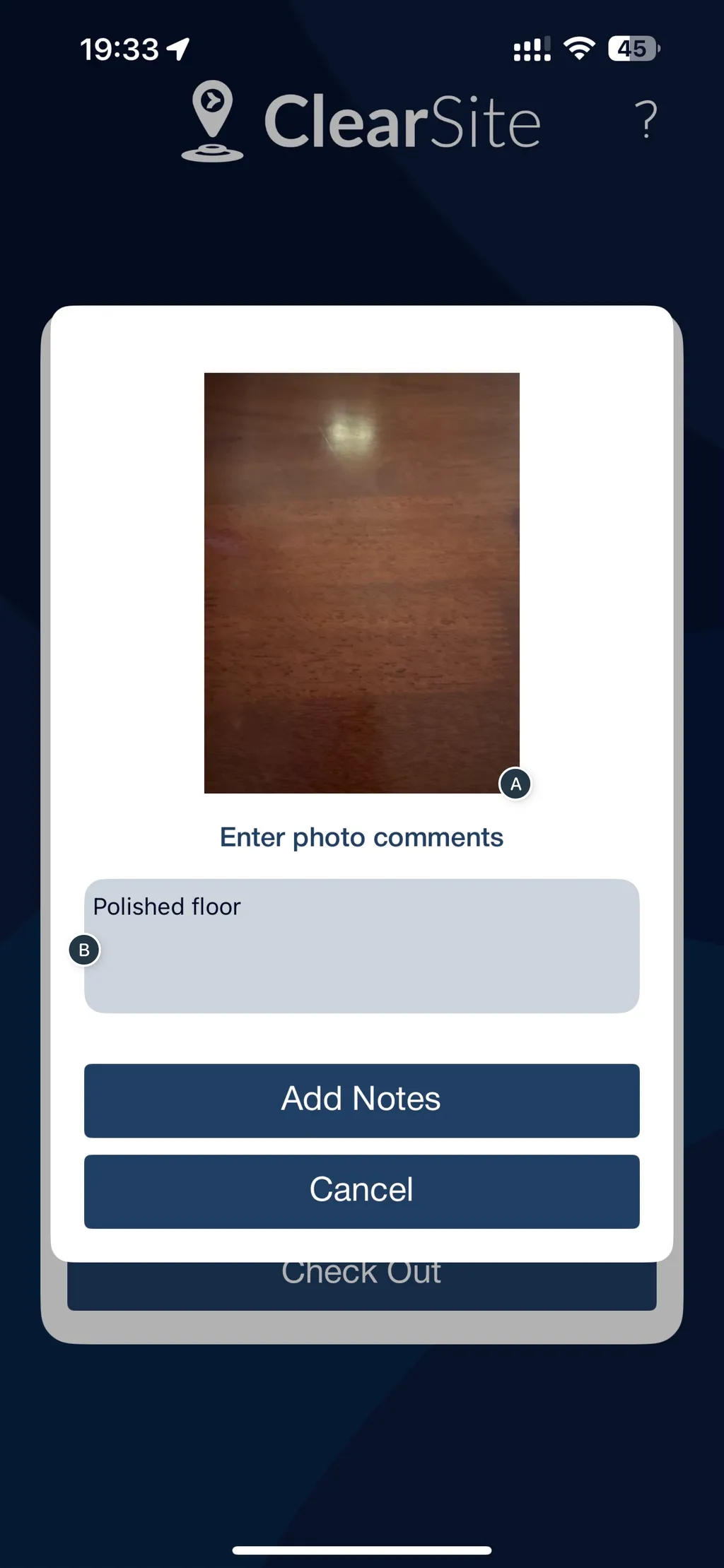

Photo Upload

Curl

curl -X 'POST' \
  'https://uat.csdpi.protovate.com/api/photo/upload' \
  -H 'accept: application/json' \
  -H 'Content-Type: multipart/form-data' \
  -F 'vendorId="123"' \
  -F 'files=@filenameImage.png;type=image/png' \
  -F 'tzOffset=-250' \
  -F 'submitAt=' \
  -F 'note='

Request Payload

{
  "vendorId": "vendor_12345",
  "files": ["file_abc123.jpg", "file_xyz789.pdf"],
  "tzOffset": "+0500",
  "submitAt": "2025-06-17T14:30:00Z",
  "note": "Submitting required documents for review."
}

Responses

🟢 200 - Photos uploaded

[
  {
    "src": "16_09_10_16_09_2021_Screenshot_1.png",
    "id": "6165b3cb44672291dfeafe3c"
  }
]

Description

This endpoint is used to upload one or more photos, along with optional notes and the associated Vendor ID. After a successful upload, it returns a unique ID for each uploaded photo.

Use this API when a user needs to submit photos when documenting site visits, inspection, or logging issues.

This requires a valid JWT Token in the Authorization Header.

Method: POST

URL: /photo/upload

Headers

authorization: JWT Token

See 📄 Login for more information.

Request Payload

Parameter Required Data Type Description
vendorId true string Vendor identifier
files true array[string] List of file identifiers or URLs
tzOffset true string Timezone offset from UTC
submitAt false string Submission timestamp
note false string Optional note or comment

application/json
